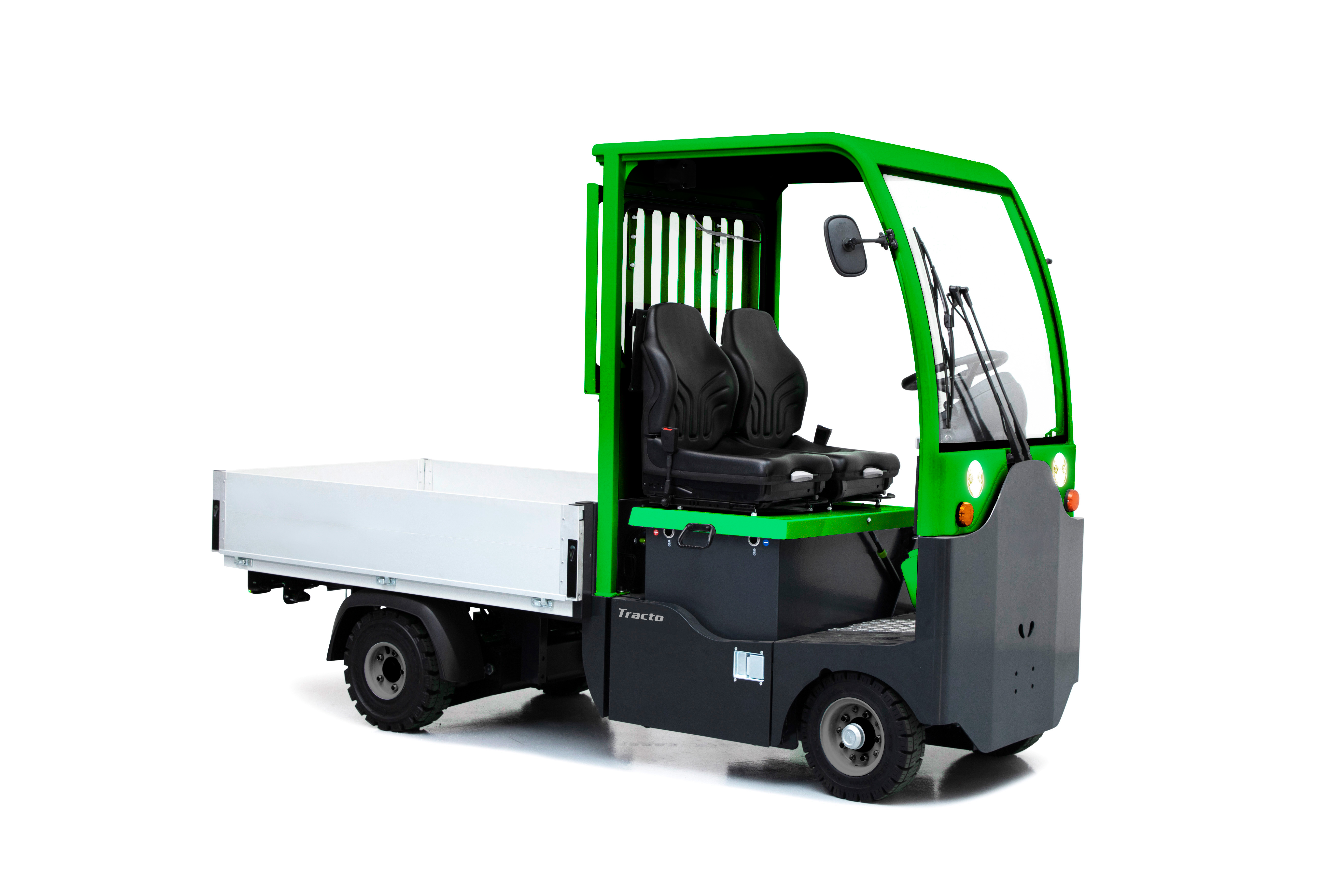

PE15.1
Central chassis.
• Steel plate platform size 1.700x1.100 mm – other sizes
available upon request.
• Suspensions: front and rear axles, front with steel helical springs,
rear with steel helical springs, hydraulic shock-absorbers and stabilizer
bar.
• Service brake on all 4 wheels, front drum brakes, rear wet
disks (multiple disks in oil bath in a closed compartment –
maintenance – free). Electronic brake engaged when
releasing the accelerator pedal and/or pushing the first stroke
of the brake pedal. Hydraulic service brake engaged when
pushing the brake pedal. Double circuit: is divided in two
parallel parts, if one fails, the other keeps working allowing to
bring unit to maintenance/recovery point in safety.
• Standard hydraulic steering.
• 1 operator on board. Optimised driving position for maximum
comfort and efficiency as well as user-friendly and ergonomic
dashboard. Passenger seat available upon request.
• “Man on board” device under driver’s seat. Availableinbasic
version,withweather protectionroof withfront windscreenandelectric
wipers. PVC canvas doors or cab with hinged side doors available.
Lighting system: 2 front lights (position/dipped-beam/mainbeam), 2 front turn indicators, 2 rear turn indicators, 2 rear
lights (position/brake lights). Horn. Flashing light, reversing
light and blue lights available upon request.
• Digital dashboard with the battery charge indicator, fault
detection, speedometer and hour meter. 24 V DC/DC converter
for auxiliary services.
• Induction motor equipped with encoder, thermal probes and
negative electromagnetic parking brake with manual brake
disengage lever.
• Electronic speed control of AC motor with energy
recovery during deceleration and braking. Towing hitch
available upon request.
• Battery DIN 43531A 48 V 420-460-500Ah
Standard paint finish: chassis dark grey RAL 7021 /body lig th
grey RAL 7035.Other colours available upon request.

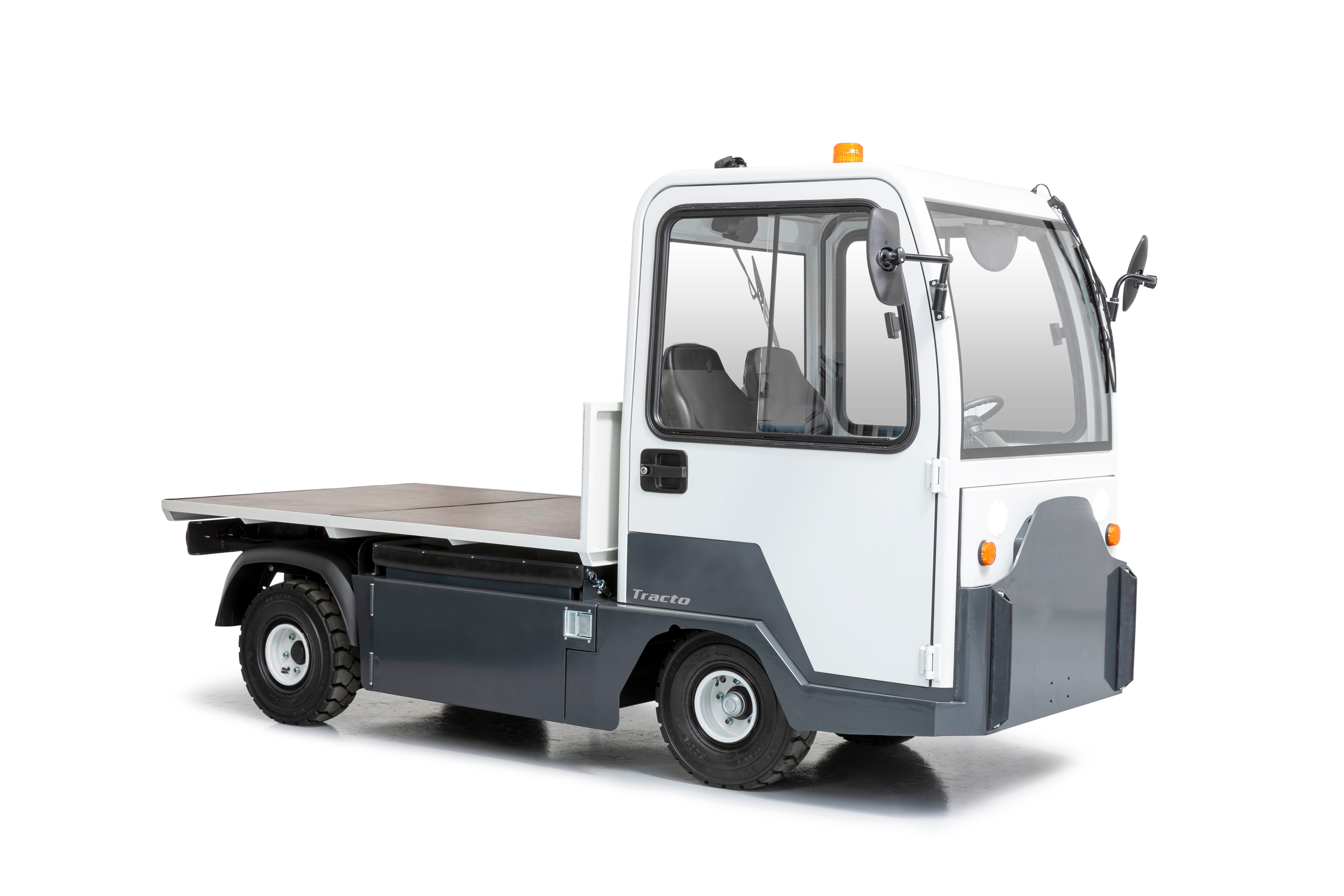

PE20.1
Central chassis.
• Phenol-resin bonded plywood platform size 2,000x1,300 mm
- other sizes and materials available upon request. Aluminium
tipping side walls h 300 mm available upon request.
• Suspensions: rubberised steel coil springs in the front, semi-elliptical leaf springs in the rear.
• Drum service brake acting on 4 wheels with twofold braking
system. Electromagnetic and mechanical lever-type parking
brake. Preset electrical braking, operating automatically when
accelerator pedal is released, with first stroke of brake pedal
and on reversing direction.
• Standard hydraulic steering.
• 2 operators on board. Optimised driving position for maximum
comfort and efficiency, low step-on platform for comfortable
access as well as user-friendly and ergonomic dashboard.
• “Man on board” device with seat occupancy sensor. Available
in basic version, with weather protection roof with front
windscreen and electric wipers. PVC canvas doors or cab with
hinged side doors available.
Lighting system: 2 front lights (position/dipped-beam/main-be
am), 2 front turn indicators, 2 rear turn indicators, 2 rear lights
(position/brake lights). Horn. Flashing light, reversing light and
blue lights available upon request.
• Digital dashboard with battery charge indicator, fault
detection, speedometer and hour meter. 24 V DC/DC converter
for auxiliary services.
• Induction motor equipped with encoder, thermal probes and
negative electromagnetic parking brake with manual brake
disengage lever.
• Electronic speed control of AC motor with energy recovery
during deceleration and braking. Available also with towing
hitch upon request.
• Battery DIN 43531 A – available capacity 48V/480Ah.
Standard paint finish: Chassis dark grey RAL 7021, Body light
grey RAL 7035. Other colours available on request.
